One App - Two proxies

Application

Application access requirement

This specifc use-case revolves around providing secure and un-secure access to an application. Internal consumption of application API needs bypassing SSL. External consumption of the application API happens over SSL

We demonstrate the use-case using the petstore example.

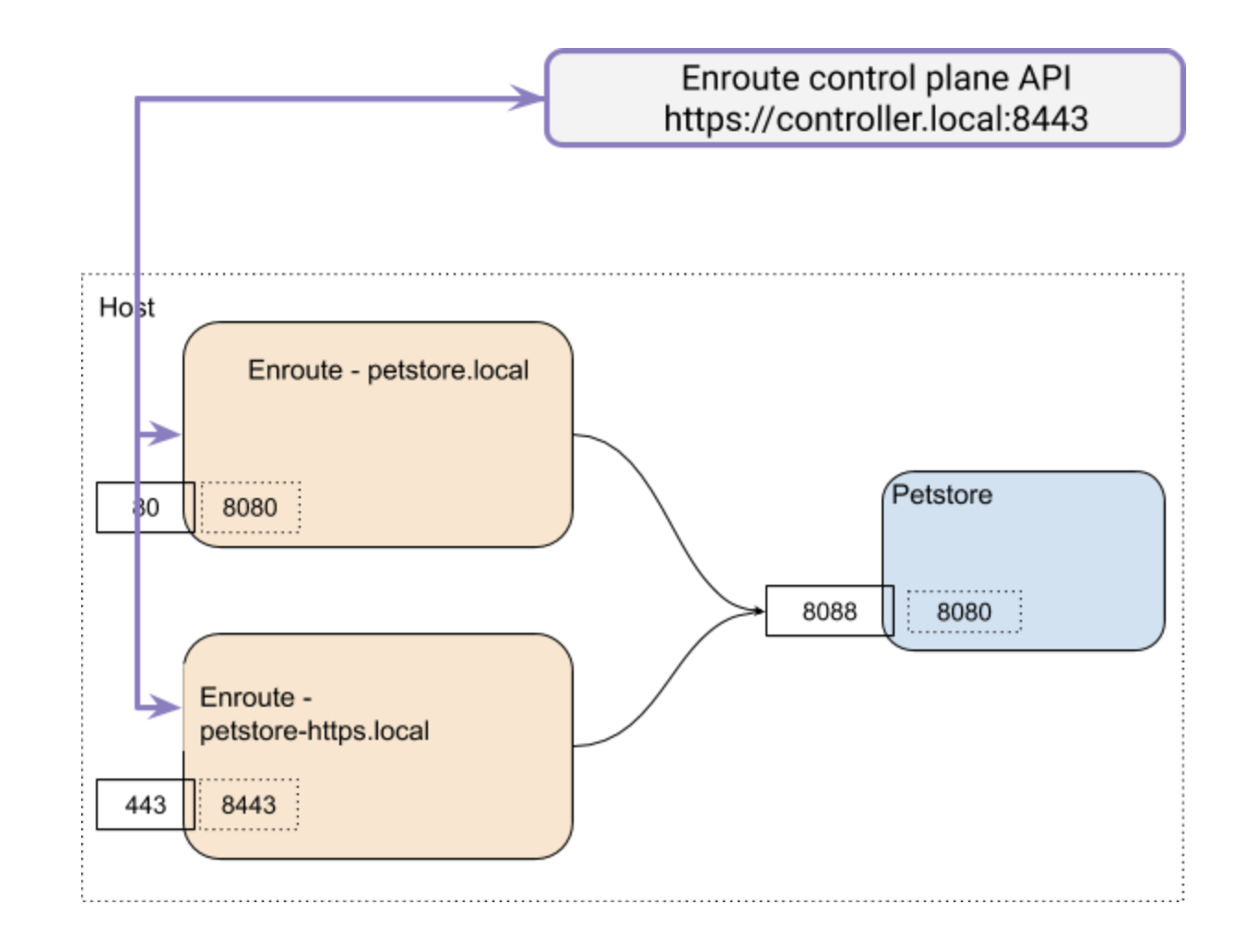

Application architecture

The customer use-case needs configuration of two proxies to achieve this. One runs the application without the certificate and another one runs it with the certificate.

We’ll walk through the following list of steps to achieve this objective

Start control plane (For this example, we assume it is already running on https://controller.local:8443
Create proxies, one for petstore, another for petstore-https
Create service, one for petstore, another for petstore-https
Associate route and upstream with petstore and petstore-https service
Create secret and attach secret to petstore-https
Associate psetstore service to petstore proxy
Associate psetstore-https service to petstore-https proxy
Send test traffic to petstore-http and petstore-https

Control Plane

Control Plane for proxy configuration

We spin up a control plane to create proxies and applications. Each of the data plane components connect to this control plane to read their config.

Control Plane API

The control plane exposes a RESTful API to administer proxies. The API provides complete control over the proxies.

The admin API accepts content type application/json.

Control Plane Abstractions

Proxy : Proxy defines configuration associated with one proxy.
Service : Service is configuration associated with a listener. We associate service with a proxy to program it on a proxy.
Route : Route defines L7 routing rules.
Upstream : Upstream represents an endpoint to send traffic to

Creating Proxies

Proxy is our high level abstraction that holds configuration related to a proxy. We initially create proxies on the control plane.

Create proxy to serve application over http

Proxy can be created using the following commands -

$ curl -s -X POST https://controller.local:8443/proxy -d '{"Name":"petstore"}' -H "Content-Type: application/json" -H "Authorization: Bearer treeseverywhere" | python -m json.tool
{
    "name": "petstore"
}

To get details about the proxy -

$ curl -s https://controller.local:8443/proxy/petstore -H "Authorization: Bearer treeseverywhere" | python -m json.tool
{
    "data": {
        "saaras_db_proxy": [
            {
                "create_ts": "2019-09-17T22:03:23.307982+00:00",
                "proxy_id": 18,
                "proxy_name": "petstore",
                "update_ts": "2019-09-17T22:05:12.004973+00:00"
            }
        ]
    }
}

Create another proxy to serve traffic over https, check list of proxies

We repeat the steps above with “petstore-https” to create another proxy. Once created, check the list of proxies created -

$ curl -s https://controller.local:8443/proxy -H "Authorization: Bearer treeseverywhere" | python -m json.tool
{
    "data": {
        "saaras_db_proxy": [
            {
                "create_ts": "2019-09-17T22:03:23.307982+00:00",
                "proxy_id": 18,
                "proxy_name": "petstore",
                "update_ts": "2019-09-17T22:05:12.004973+00:00"
            },
            {
                "create_ts": "2019-09-17T22:27:35.555514+00:00",
                "proxy_id": 20,
                "proxy_name": "petstore-https",
                "update_ts": "2019-09-17T22:54:26.053712+00:00"
            }
        ]
    }
}

Connecting data plane to proxies

Saaras data plane container

The Saaras data plane container comes pre-packaged with Envoy. It is accessible on docker at saarasio/enroute

Running data plane container

Running the data plane requires specifying the IP address and port of the control plane. The data plane container takes three arguments to determine details about the control plane.

ENROUTE_NAME - this is the name of the proxy created on the control plane
ENROUTE_CP_IP - this is the IP or the host to connect to the control plane
ENROUTE_CP_PORT - this is the port of the host to connect to the control plane
ENROUTE_CP_PROTO - the protocol to use to connect to the control plane

We create the data plane for petstore proxy using the following command -

docker run -e ENROUTE_NAME=petstore -e ENROUTE_CP_IP=controller.local -e ENROUTE_CP_PORT=8443 -e ENROUTE_CP_PROTO=HTTPS -p 80:8080 saarasio/enroute

By default listener inside the container is created on port 8080. This port is published to the host stack using the -p 80:8080 directive. We connect to the control plane over HTTPS.

We create the data plane for petstore-https proxy using the following command -

sudo docker run -e ENROUTE_NAME=petstore-https -e ENROUTE_CP_IP=controller.local -e ENROUTE_CP_PORT=8443 -e ENROUTE_CP_PROTO=HTTPS -p 443:8443 saarasio/enroute

Programming the application on one proxy

An application is built using service -> route(s) -> upstream. The controller has APIs to work with these objects. Here we demonstrate how to work with each of these abstractions.

Under the hood, this configuration is streamed to the corresponding Envoy proxy over xDS APIs.

Create service

We start off by creating a service. A service can be created using the following API -

curl -s -X POST https://controller.local:8443/service -H "Content-Type: application/json" -H "Authorization: Bearer treeseverywhere" -d '{"Service_Name":"petstore", "Fqdn":"petstore.local"}' | python -m json.tool
{
    "data": {
        "saaras_db_service": [
            {
                "create_ts": "2019-09-12T00:14:21.68843+00:00",
                "fqdn": "petstore.local",
                "service_id": 30,
                "service_name": "petstore",
                "update_ts": "2019-09-17T22:29:31.623226+00:00"
            }
        ]
    }
}

Here is how you view all the services -

$ curl -s https://controller.local:8443/service -H "Authorization: Bearer treeseverywhere" | python -m json.tool
{
    "data": {
        "saaras_db_service": [
            {
                "create_ts": "2019-09-12T00:14:21.68843+00:00",
                "fqdn": "petstore.local",
                "service_id": 30,
                "service_name": "petstore",
                "update_ts": "2019-09-17T22:29:31.623226+00:00"
            },
            {
                "create_ts": "2019-09-17T22:53:27.129213+00:00",
                "fqdn": "petstore-https.local",
                "service_id": 94,
                "service_name": "petstore-https",
                "update_ts": "2019-09-17T23:23:37.433466+00:00"
            }
        ]
    }
}

To view just one service, qualify the above command with service name -

$ curl -s https://controller.local:8443/service/petstore -H "Authorization: Bearer treeseverywhere" | python -m json.tool
{
    "data": {
        "saaras_db_service": [
            {
                "create_ts": "2019-09-12T00:14:21.68843+00:00",
                "fqdn": "petstore.local",
                "service_id": 30,
                "service_name": "petstore",
                "update_ts": "2019-09-17T22:29:31.623226+00:00"
            }
        ]
    }
}

Create route(s) for service

Routes are rules to provide L7 routing information to Envoy. To create a route for the petstore, use the following command.

$ curl -s -X POST https://controller.local:8443/service/petstore/route -H "Content-Type: application/json" -H "Authorization: Bearer treeseverywhere" -d '{"Route_name":"default", "Route_prefix":"/"}' | python -m json.tool
{
    "data": {
        "insert_saaras_db_route": {
            "affected_rows": 2
        }
    }
}

You can also see a service, its routes and associated upstream using the dump api for a service. We can look at a service and its associated route using the following command -

curl -s https://controller.local:8443/service/dump/petstore -H "Authorization: Bearer treeseverywhere" | python -m json.tool
{
    "data": {
        "saaras_db_service": [
            {
                "create_ts": "2019-09-12T00:14:21.68843+00:00",
                "fqdn": "petstore.local",
                "routes": [
                    {
                        "route_id": 19,
                        "route_name": "default",
                        "route_prefix": "/",
                    },
                ],
                "service_id": 30,
                "service_name": "petstore",
                "service_secrets": []
            }
        ]
    }
}

Create upstream

Next we create an upstream that will serve this traffic -

$ curl -s -X POST https://controller.local:8443/upstream -H "Content-Type: application/json" -H "Authorization: Bearer treeseverywhere" -d '{"Upstream_name":"default", "Upstream_ip":"172.31.18.10", "Upstream_port":"8088", "Upstream_weight":"100", "Upstream_hc_path": "/" }' | python -m json.tool
{
    "data": {
        "insert_saaras_db_upstream": {
            "affected_rows": 1
        }
    }
}

View the upstream

Use the following command to view the upstream -

$ curl -s  https://controller.local:8443/upstream/default -H "Authorization: Bearer treeseverywhere" | python -m json.tool
{
    "data": {
        "saaras_db_upstream": [
            {
                "create_ts": "2019-09-12T00:38:05.564381+00:00",
                "update_ts": "2019-09-17T22:53:27.139382+00:00",
                "upstream_hc_healthythresholdcount": 0,
                "upstream_hc_host": "",
                "upstream_hc_intervalseconds": 0,
                "upstream_hc_path": "/",
                "upstream_hc_timeoutseconds": 0,
                "upstream_hc_unhealthythresholdcount": 0,
                "upstream_id": 16,
                "upstream_ip": "172.31.18.10",
                "upstream_name": "default",
                "upstream_port": 8088,
                "upstream_strategy": "",
                "upstream_validation_cacertificate": "",
                "upstream_validation_subjectname": "",
                "upstream_weight": 100
            }
        ]
    }
}

Associate upstream with routes

We have created a service, a route for this service. Next we created an upstream. However this upstream is not associated with the route. Here we associate the upstream with the route -

$ curl -s -X POST https://controller.local:8443/service/petstore/route/default/upstream/default -H "Content-Type: application/json" -H "Authorization: Bearer treeseverywhere" | python -m json.tool
{
    "data": {
        "insert_saaras_db_route_upstream": {
            "affected_rows": 4
        }
    }
}

Dump service to view (service -> route -> upstream)

$ curl -s https://controller.local:8443/service/dump/petstore -H "Authorization: Bearer treeseverywhere" | python -m json.tool
{
    "data": {
        "saaras_db_service": [
            {
                "create_ts": "2019-09-12T00:14:21.68843+00:00",
                "fqdn": "petstore.local",
                "routes": [
                    {
                        "route_id": 19,
                        "route_name": "default",
                        "route_prefix": "/",
                        "route_upstreams": [
                            {
                                "upstream": {
                                    "upstream_id": 16,
                                    "upstream_ip": "172.31.18.10",
                                    "upstream_name": "default",
                                    "upstream_port": 8088
                                }
                            }
                        ]
                    },
                ],
                "service_id": 30,
                "service_name": "petstore",
                "service_secrets": []
            }
        ]
    }
}

Associate the service with petstore proxy

curl -s -X POST https://controller.local:8443/proxy/petstore/service/petstore -H "Authorization: Bearer treeseverywhere" | python -m json.tool

Dump petstore proxy config

$ curl -s https://controller.local:8443/proxy/dump/petstore -H "Authorization: Bearer treeseverywhere" | python -m json.tool
{
    "data": {
  "saaras_db_proxy": [
      {
    "create_ts": "2019-09-17T22:03:23.307982+00:00",
    "proxy_id": 18,
    "proxy_name": "petstore",
    "proxy_services": [
  {
      "service": {
    "create_ts": "2019-09-12T00:14:21.68843+00:00",
    "fqdn": "petstore.local",
    "routes": [
        {
            "create_ts": "2019-09-12T00:19:06.462858+00:00",
            "route_id": 19,
            "route_name": "default",
            "route_prefix": "/",
            "route_upstreams": [
                {
                    "upstream": {
                        "create_ts": "2019-09-12T00:38:05.564381+00:00",
                        "update_ts": "2019-09-17T22:53:27.139382+00:00",
                        "upstream_hc_healthythresholdcount": 0,
                        "upstream_hc_host": "",
                        "upstream_hc_intervalseconds": 0,
                        "upstream_hc_path": "/",
                        "upstream_hc_timeoutseconds": 0,
                        "upstream_hc_unhealthythresholdcount": 0,
                        "upstream_id": 16,
                        "upstream_ip": "172.31.18.10",
                        "upstream_name": "default",
                        "upstream_port": 8088,
                        "upstream_strategy": "",
                        "upstream_validation_cacertificate": "",
                        "upstream_validation_subjectname": "",
                        "upstream_weight": 100
                    }
                }
            ],
            "update_ts": "2019-09-23T22:22:09.688875+00:00"
        },
        {
            "create_ts": "2019-09-12T01:50:11.47308+00:00",
            "route_id": 22,
            "route_name": "proxy_admin",
            "route_prefix": "/admin",
            "route_upstreams": [
                {
                    "upstream": {
                        "create_ts": "2019-09-12T01:58:29.441053+00:00",
                        "update_ts": "2019-09-17T22:53:27.174974+00:00",
                        "upstream_hc_healthythresholdcount": null,
                        "upstream_hc_host": null,
                        "upstream_hc_intervalseconds": null,
                        "upstream_hc_path": "/admin",
                        "upstream_hc_timeoutseconds": null,
                        "upstream_hc_unhealthythresholdcount": null,
                        "upstream_id": 21,
                        "upstream_ip": "127.0.0.1",
                        "upstream_name": "proxy_admin",
                        "upstream_port": 9001,
                        "upstream_strategy": null,
                        "upstream_validation_cacertificate": null,
                        "upstream_validation_subjectname": null,
                        "upstream_weight": 100
                    }
                }
            ],
            "update_ts": "2019-09-12T02:01:23.085169+00:00"
        },
        {
            "create_ts": "2019-09-12T02:06:49.882298+00:00",
            "route_id": 26,
            "route_name": "proxy_listeners",
            "route_prefix": "/listeners",
            "route_upstreams": [
                {
                    "upstream": {
                        "create_ts": "2019-09-12T01:58:29.441053+00:00",
                        "update_ts": "2019-09-17T22:53:27.174974+00:00",
                        "upstream_hc_healthythresholdcount": null,
                        "upstream_hc_host": null,
                        "upstream_hc_intervalseconds": null,
                        "upstream_hc_path": "/admin",
                        "upstream_hc_timeoutseconds": null,
                        "upstream_hc_unhealthythresholdcount": null,
                        "upstream_id": 21,
                        "upstream_ip": "127.0.0.1",
                        "upstream_name": "proxy_admin",
                        "upstream_port": 9001,
                        "upstream_strategy": null,
                        "upstream_validation_cacertificate": null,
                        "upstream_validation_subjectname": null,
                        "upstream_weight": 100
                    }
                }
            ],
            "update_ts": "2019-09-12T02:07:32.451421+00:00"
        },
        {
            "create_ts": "2019-09-12T02:08:00.49249+00:00",
            "route_id": 28,
            "route_name": "proxy_clusters",
            "route_prefix": "/clusters",
            "route_upstreams": [
                {
                    "upstream": {
                        "create_ts": "2019-09-12T01:58:29.441053+00:00",
                        "update_ts": "2019-09-17T22:53:27.174974+00:00",
                        "upstream_hc_healthythresholdcount": null,
                        "upstream_hc_host": null,
                        "upstream_hc_intervalseconds": null,
                        "upstream_hc_path": "/admin",
                        "upstream_hc_timeoutseconds": null,
                        "upstream_hc_unhealthythresholdcount": null,
                        "upstream_id": 21,
                        "upstream_ip": "127.0.0.1",
                        "upstream_name": "proxy_admin",
                        "upstream_port": 9001,
                        "upstream_strategy": null,
                        "upstream_validation_cacertificate": null,
                        "upstream_validation_subjectname": null,
                        "upstream_weight": 100
                    }
                }
            ],
            "update_ts": "2019-09-12T02:08:08.684786+00:00"
        }
    ],
    "service_id": 30,
    "service_name": "petstore",
    "service_secrets": [],
    "update_ts": "2019-09-23T22:22:09.688875+00:00"
      }
  }
    ],
    "update_ts": "2019-09-17T22:05:12.004973+00:00"
      }
  ]
    }
}

Create service to serve application over HTTPS - use deepcopy

curl -s -X POST https://controller.local:8443/service/deepcopy/petstore/petstore-https -H "Authorization: Bearer treeseverywhere" | python -m json.tool

Create and associate Secret to the newly created service

Next we show how create a secret and upload a key and a cert for that secret

Create a secret

Create a secret

curl -s -X POST https://controller.local:8443/secret -d '{"Secret_name":"petstore-https-secret"}' -H "Content-Type: application/json" -H "Authorization: Bearer treeseverywhere" | python -m json.tool

Upload a key

curl -vvv -X POST -F 'Secret_key=@privkey.pem' https://controller.local:8443/secret/petstore-https-secret/key -H "Authorization: Bearer treeseverywhere" | python -m json.tool

Upload a cert

curl -vvv -X POST -F 'Secret_cert=@fullchain.pem' https://controller.local:8443/secret/petstore-https-secret/cert -H "Authorization: Bearer treeseverywhere" | python -m json.tool

Attach the secret to a service

curl -s -X POST https://controller.local:8443/service/petstore-https/secret/petstore-https-secret -H "Authorization: Bearer treeseverywhere" | python -m json.tool

Associate the service with petstore-https proxy

curl -s -X POST https://controller.local:8443/proxy/petstore-https/service/petstore-https -H "Authorization: Bearer treeseverywhere" | python -m json.tool

Dump petstore-https proxy config

$ curl -s https://controller.local:8443/proxy/dump/petstore-https -H "Authorization: Bearer treeseverywhere" | python -m json.tool
{
 "data": {
  "saaras_db_proxy": [
   {
 "create_ts": "2019-09-17T22:27:35.555514+00:00",
 "proxy_id": 20,
 "proxy_name": "petstore-https",
 "proxy_services": [
  {
   "service": {
 "create_ts": "2019-09-17T22:53:27.129213+00:00",
 "fqdn": "petstore-https.local",
 "routes": [
     {
         "create_ts": "2019-09-17T22:53:27.133695+00:00",
         "route_id": 72,
         "route_name": "default",
         "route_prefix": "/",
         "route_upstreams": [
             {
                 "upstream": {
                     "create_ts": "2019-09-12T00:38:05.564381+00:00",
                     "update_ts": "2019-09-17T22:53:27.139382+00:00",
                     "upstream_hc_healthythresholdcount": 0,
                     "upstream_hc_host": "",
                     "upstream_hc_intervalseconds": 0,
                     "upstream_hc_path": "/",
                     "upstream_hc_timeoutseconds": 0,
                     "upstream_hc_unhealthythresholdcount": 0,
                     "upstream_id": 16,
                     "upstream_ip": "172.31.18.10",
                     "upstream_name": "default",
                     "upstream_port": 8088,
                     "upstream_strategy": "",
                     "upstream_validation_cacertificate": "",
                     "upstream_validation_subjectname": "",
                     "upstream_weight": 100
                 }
             }
         ],
         "update_ts": "2019-09-17T22:53:27.139382+00:00"
     },
     {
         "create_ts": "2019-09-17T22:53:27.14846+00:00",
         "route_id": 74,
         "route_name": "proxy_admin",
         "route_prefix": "/admin",
         "route_upstreams": [
             {
                 "upstream": {
                     "create_ts": "2019-09-12T01:58:29.441053+00:00",
                     "update_ts": "2019-09-17T22:53:27.174974+00:00",
                     "upstream_hc_healthythresholdcount": null,
                     "upstream_hc_host": null,
                     "upstream_hc_intervalseconds": null,
                     "upstream_hc_path": "/admin",
                     "upstream_hc_timeoutseconds": null,
                     "upstream_hc_unhealthythresholdcount": null,
                     "upstream_id": 21,
                     "upstream_ip": "127.0.0.1",
                     "upstream_name": "proxy_admin",
                     "upstream_port": 9001,
                     "upstream_strategy": null,
                     "upstream_validation_cacertificate": null,
                     "upstream_validation_subjectname": null,
                     "upstream_weight": 100
                 }
             }
         ],
         "update_ts": "2019-09-17T22:53:27.151782+00:00"
     },
     {
         "create_ts": "2019-09-17T22:53:27.162287+00:00",
         "route_id": 76,
         "route_name": "proxy_listeners",
         "route_prefix": "/listeners",
         "route_upstreams": [
             {
                 "upstream": {
                     "create_ts": "2019-09-12T01:58:29.441053+00:00",
                     "update_ts": "2019-09-17T22:53:27.174974+00:00",
                     "upstream_hc_healthythresholdcount": null,
                     "upstream_hc_host": null,
                     "upstream_hc_intervalseconds": null,
                     "upstream_hc_path": "/admin",
                     "upstream_hc_timeoutseconds": null,
                     "upstream_hc_unhealthythresholdcount": null,
                     "upstream_id": 21,
                     "upstream_ip": "127.0.0.1",
                     "upstream_name": "proxy_admin",
                     "upstream_port": 9001,
                     "upstream_strategy": null,
                     "upstream_validation_cacertificate": null,
                     "upstream_validation_subjectname": null,
                     "upstream_weight": 100
                 }
             }
         ],
         "update_ts": "2019-09-17T22:53:27.165597+00:00"
     },
     {
         "create_ts": "2019-09-17T22:53:27.171819+00:00",
         "route_id": 78,
         "route_name": "proxy_clusters",
         "route_prefix": "/clusters",
         "route_upstreams": [
             {
                 "upstream": {
                     "create_ts": "2019-09-12T01:58:29.441053+00:00",
                     "update_ts": "2019-09-17T22:53:27.174974+00:00",
                     "upstream_hc_healthythresholdcount": null,
                     "upstream_hc_host": null,
                     "upstream_hc_intervalseconds": null,
                     "upstream_hc_path": "/admin",
                     "upstream_hc_timeoutseconds": null,
                     "upstream_hc_unhealthythresholdcount": null,
                     "upstream_id": 21,
                     "upstream_ip": "127.0.0.1",
                     "upstream_name": "proxy_admin",
                     "upstream_port": 9001,
                     "upstream_strategy": null,
                     "upstream_validation_cacertificate": null,
                     "upstream_validation_subjectname": null,
                     "upstream_weight": 100
                 }
             }
         ],
         "update_ts": "2019-09-17T22:53:27.174974+00:00"
     }
 ],
 "service_id": 94,
 "service_name": "petstore-https",
 "service_secrets": [
     {
         "secret": {
             "create_ts": "2019-09-17T23:10:48.299743+00:00",
             "secret_cert": "-----BEGIN CERTIFICATE-----
               MIIFdDCCBFygAwIBAgISA8jvDUl7GQ1VfzT3GBpMpMAdMA0GCSqGSIb3DQEBCwUA
               MEoxCzAJBgNVBAYTAlVTMRYwFAYDVQQKEw1MZXQncyBFbmNyeXB0MSMwIQYDVQQD
               ExpMZXQncyBFbmNyeXB0IEF1dGhvcml0eSBYMzAeFw0xOTA5MTcyMjA4MjBaFw0x
               OTEyMTYyMjA4MjBaMCgxJjAkBgNVBAMTHXBldHN0b3JlLWh0dHBzLmluZ3Jlc3Nw
               aXBlLmlvMIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAvvsGNbgelrwQ
               r8x3znQg8GOwae69/FAeUcVwqz+OPieKmvq/Y3OMC5L2gPrEv/yynut3wyxhNRZI
               Fm8UV8s1rqiS1LiMumO3FED4etSM3uYRYo7vz6fVWnmdl5Lgw8BH07tS3cC/afI/
               ZW6sdnk09PYH/dfYIRf/oyvxXVW5y6gtcU7/ACKKpX5QrIP+0wPyNYftZSley0s7
               fV44kZ3LosXWIEILzxvhmNK4OH9yXdvQXL9d30NIydSG2tbwsTWRs6jBaqkMafAN
               eypegRwT/sAeOxRe1WSEb6QycyaHYnpF3c45LsSRMgeneq6FphOfwgWYEpzna2iU
               ElH06b2QWQIDAQABo4ICdDCCAnAwDgYDVR0PAQH/BAQDAgWgMB0GA1UdJQQWMBQG
               CCsGAQUFBwMBBggrBgEFBQcDAjAMBgNVHRMBAf8EAjAAMB0GA1UdDgQWBBRD7RrZ
               Ic9CKq2l47JbFhdAxyV90jAfBgNVHSMEGDAWgBSoSmpjBH3duubRObemRWXv86js
               oTBvBggrBgEFBQcBAQRjMGEwLgYIKwYBBQUHMAGGImh0dHA6Ly9vY3NwLmludC14
               My5sZXRzZW5jcnlwdC5vcmcwLwYIKwYBBQUHMAKGI2h0dHA6Ly9jZXJ0LmludC14
               My5sZXRzZW5jcnlwdC5vcmcvMCgGA1UdEQQhMB+CHXBldHN0b3JlLWh0dHBzLmlu
               Z3Jlc3NwaXBlLmlvMEwGA1UdIARFMEMwCAYGZ4EMAQIBMDcGCysGAQQBgt8TAQEB
               MCgwJgYIKwYBBQUHAgEWGmh0dHA6Ly9jcHMubGV0c2VuY3J5cHQub3JnMIIBBgYK
               KwYBBAHWeQIEAgSB9wSB9ADyAHcAdH7agzGtMxCRIZzOJU9CcMK//V5CIAjGNzV5
               5hB7zFYAAAFtQXvg3AAABAMASDBGAiEAsLBIXPgQZL8K86PaKKqN2sDvsWgzw7mT
               QhJoI6wkY8UCIQDmp69yj3O2IH8TS89ueMaJbe9Ls+fddpIhqcbIEnfsQAB3ACk8
               UZZUyDlluqpQ/FgH1Ldvv1h6KXLcpMMM9OVFR/R4AAABbUF74PQAAAQDAEgwRgIh
               APkNCQIDsUM6VY/Q8xsaNjTnSNVa9WwrqUvfOObYgSvjAiEA8SNeKn1D7zyMeQuD
               3zU1akhs9UtTi6GNnBvh9tPdPAwwDQYJKoZIhvcNAQELBQADggEBAAaR8tbgr7Sk
               eF2nHPKvKL1GHVjhH/DRWWyUA1e+EGznXBFCeYJNnfsDtbnF9X6T7IkIqDkvVI5G
               QTi6SKNtj/IXOmgibtoCYKSrv7gbxA8t0+4C7H7PyS/+ApO4gHJqG81PdTtQSvIa
               G+vJ7EynKASXvj1jpWsRAbws63XVzXvZN4IZPVWWs32FxWTbiNfL8iylbRmoWpr5
               iTfvLa+Oh+nGqBtwGMlnTjjwoGIz7lshhGOdhr7tMkf5BS/zOOxRGWaE57eIvQi8
               9l3WIRzrrPRKRIqwB72ITg87hCy9DJSwYmtfwe1l4JtWWyrFfXVhhV5kcheSuf5a
               Yef9y9ufFZ4=
               -----END CERTIFICATE-----
               -----BEGIN CERTIFICATE-----
               MIIEkjCCA3qgAwIBAgIQCgFBQgAAAVOFc2oLheynCDANBgkqhkiG9w0BAQsFADA/
               MSQwIgYDVQQKExtEaWdpdGFsIFNpZ25hdHVyZSBUcnVzdCBDby4xFzAVBgNVBAMT
               DkRTVCBSb290IENBIFgzMB4XDTE2MDMxNzE2NDA0NloXDTIxMDMxNzE2NDA0Nlow
               SjELMAkGA1UEBhMCVVMxFjAUBgNVBAoTDUxldCdzIEVuY3J5cHQxIzAhBgNVBAMT
               GkxldCdzIEVuY3J5cHQgQXV0aG9yaXR5IFgzMIIBIjANBgkqhkiG9w0BAQEFAAOC
               AQ8AMIIBCgKCAQEAnNMM8FrlLke3cl03g7NoYzDq1zUmGSXhvb418XCSL7e4S0EF
               q6meNQhY7LEqxGiHC6PjdeTm86dicbp5gWAf15Gan/PQeGdxyGkOlZHP/uaZ6WA8
               SMx+yk13EiSdRxta67nsHjcAHJyse6cF6s5K671B5TaYucv9bTyWaN8jKkKQDIZ0
               Z8h/pZq4UmEUEz9l6YKHy9v6Dlb2honzhT+Xhq+w3Brvaw2VFn3EK6BlspkENnWA
               a6xK8xuQSXgvopZPKiAlKQTGdMDQMc2PMTiVFrqoM7hD8bEfwzB/onkxEz0tNvjj
               /PIzark5McWvxI0NHWQWM6r6hCm21AvA2H3DkwIDAQABo4IBfTCCAXkwEgYDVR0T
               AQH/BAgwBgEB/wIBADAOBgNVHQ8BAf8EBAMCAYYwfwYIKwYBBQUHAQEEczBxMDIG
               CCsGAQUFBzABhiZodHRwOi8vaXNyZy50cnVzdGlkLm9jc3AuaWRlbnRydXN0LmNv
               bTA7BggrBgEFBQcwAoYvaHR0cDovL2FwcHMuaWRlbnRydXN0LmNvbS9yb290cy9k
               c3Ryb290Y2F4My5wN2MwHwYDVR0jBBgwFoAUxKexpHsscfrb4UuQdf/EFWCFiRAw
               VAYDVR0gBE0wSzAIBgZngQwBAgEwPwYLKwYBBAGC3xMBAQEwMDAuBggrBgEFBQcC
               ARYiaHR0cDovL2Nwcy5yb290LXgxLmxldHNlbmNyeXB0Lm9yZzA8BgNVHR8ENTAz
               MDGgL6AthitodHRwOi8vY3JsLmlkZW50cnVzdC5jb20vRFNUUk9PVENBWDNDUkwu
               Y3JsMB0GA1UdDgQWBBSoSmpjBH3duubRObemRWXv86jsoTANBgkqhkiG9w0BAQsF
               AAOCAQEA3TPXEfNjWDjdGBX7CVW+dla5cEilaUcne8IkCJLxWh9KEik3JHRRHGJo
               uM2VcGfl96S8TihRzZvoroed6ti6WqEBmtzw3Wodatg+VyOeph4EYpr/1wXKtx8/
               wApIvJSwtmVi4MFU5aMqrSDE6ea73Mj2tcMyo5jMd6jmeWUHK8so/joWUoHOUgwu
               X4Po1QYz+3dszkDqMp4fklxBwXRsW10KXzPMTZ+sOPAveyxindmjkW8lGy+QsRlG
               PfZ+G6Z6h7mjem0Y+iWlkYcV4PIWL1iwBi8saCbGS5jN2p8M+X+Q7UNKEkROb3N6
               KOqkqm57TH2H3eDJAkSnh6/DNFu0Qg==
               -----END CERTIFICATE-----
             ",
             "secret_id": 5,
             "secret_key": "-----BEGIN PRIVATE KEY-----
               MIIEvgIBADANBgkqhkiG9w0BAQEFAASCBKgwggSkAgEAAoIBAQC++wY1uB6WvBCv
               zHfOdCDwY7Bp7r38UB5RxXCrP44+J4qa+r9jc4wLkvaA+sS//LKe63fDLGE1FkgW
               bxRXyzWuqJLUuIy6Y7cUQPh61Ize5hFiju/Pp9VaeZ2XkuDDwEfTu1LdwL9p8j9l
               bqx2eTT09gf919ghF/+jK/FdVbnLqC1xTv8AIoqlflCsg/7TA/I1h+1lKV7LSzt9
               XjiRncuixdYgQgvPG+GY0rg4f3Jd29Bcv13fQ0jJ1Iba1vCxNZGzqMFqqQxp8A17
               Kl6BHBP+wB47FF7VZIRvpDJzJodiekXdzjkuxJEyB6d6roWmE5/CBZgSnOdraJQS
               UfTpvZBZAgMBAAECggEAI81vZpaztVJgVnSgaSXAHxCxO8qz9x8V8AJxkskBY4mK
               JG+pfX1l3a2ZZKieRdebrMs70mz5dDhPH1WHnMXNtIaJsDNAvph+898SNgSuvAKp
               c66UKnuuNZ3i+01fsZLUZE8Tw9qkh7oQRHWxAyzJzrpo2R+jtuCG3hIY14SApjr4
               EoBddLvaC6GXb2wfzeX2GGw4TBTTaxqeV9sbloq6WyekP3VSvt9Plkc/CoPN0Gab
               0bnENEDbX5c6zklItBpVgb+sS/D9au1F8SkyElYutSpiwt7hgSbd+QLSghhcpQL6
               U0o4wMc40UggxfdsHeVJuP6s7ygEYsLeDsg3r8IamQKBgQDdWpKa0vDRobky4b6j
               jHyxch7WiqrNJCzYXZzb5VHpzHVufs9fCEAjxoHTe4pSdVezgCj010FFVqRG+fCP
               eilS2VC0s/VPFl4VmR6cgbaINd+Y0XdyFbaD4Z8do7yg0cscizT+yss1qT4hQs3r
               J39uYMaeuAT8lpGHF3j7sczI5wKBgQDc320WbsLQPNQYunxcW8ljjXp+Z954URqb
               P5BIQqXLdgG83yIzAL3aIFpeGJ8akd4/cZQpT+oEcNeaEefxVaf8wdC8KrxhGtaW
               G6gXRXHGuXoMMzHmSecc79pAQaoFSqOXCxNUlRDeq5CY4tFZaivZvBX4Bhn9XCCr
               rf74TV10vwKBgQCW+rk2axyhD9r/TqS2bxN6AOnx0eFQTRVdevSLtC2b9749YLdX
               DYyaGkLhGcmuFqV8JLVK0yuM/NzOIJqpclyPSvTWXEy85ffEaY1MmNkErSJW3MDJ
               CvBToefi0pTNaGtOi9DY3T+f2VEsZKGJfIZZph6zkbatBpI6f5MgshSJDwKBgFHG
               RtUvXOFMJBqjsLdhJEa/csKqIivZm0gvWHPoeQnDPxF2a2sGs0O3Br4fz4g+yVIj
               8v74n2PVg31/c6heVju2ZlnEWMp67UfWJX24ME+rDAzIR4lDg1WrV9rCdPhQkhCy
               AQ4nwn8udfKkx22baXDLujaBy82J9m6ZlPTJb/hxAoGBAJCJgdL1qrqae6wuq9jW
               ua+yN+EAmdsGwKJ7Z47et/nAW5JQcDInmxeyOZcgnd/8NnqBCY2J+niRo+fJhNEk
               GS7XA/g4/qciPreAEqRZ1tROVqfHcgFkM3DCAIU5S4qDBAOFmEF/7o9UzN3DH/XP
               vRgHw3tvqapryvZcZwujhDvk
               -----END PRIVATE KEY-----
             ",
             "secret_name": "petstore-https-secret",
             "update_ts": "2019-09-17T23:23:37.433466+00:00"
         }
     }
 ],
 "update_ts": "2019-09-17T23:23:37.433466+00:00"
   }
  }
 ],
 "update_ts": "2019-09-17T22:54:26.053712+00:00"
   }
  ]
 }
}

Test traffic

Test petstore app

$ curl -vvv petstore.local
* Rebuilt URL to: petstore.local/
*   Trying 13.52.165.162...
* TCP_NODELAY set
* Connected to petstore.local (13.52.165.162) port 80 (#0)
> GET / HTTP/1.1
> Host: petstore.local
> User-Agent: curl/7.54.0
> Accept: */*
>
< HTTP/1.1 200 OK
< last-modified: Mon, 13 Aug 2018 06:26:44 GMT
< accept-ranges: bytes
< content-type: text/html;charset=UTF-8
< content-language: en-US
< content-length: 1832
< date: Mon, 23 Sep 2019 23:02:18 GMT
< x-envoy-upstream-service-time: 2
< server: envoy
<
<!-- HTML for static distribution bundle build -->
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Swagger UI</title>
    <link href="https://fonts.googleapis.com/css?family=Open+Sans:400,700|Source+Code+Pro:300,600|Titillium+Web:400,600,700" rel="stylesheet">
    <link rel="stylesheet" type="text/css" href="./swagger-ui/swagger-ui.css" >
    <link rel="icon" type="image/png" href="./swagger-ui/favicon-32x32.png" sizes="32x32" />
    <link rel="icon" type="image/png" href="./swagger-ui/favicon-16x16.png" sizes="16x16" />
    <style>
        html
        {
            box-sizing: border-box;
            overflow: -moz-scrollbars-vertical;
            overflow-y: scroll;
        }

        *,
        *:before,
        *:after
        {
            box-sizing: inherit;
        }

        body
        {
            margin:0;
            background: #fafafa;
        }
    </style>
</head>

<body>
<div id="swagger-ui"></div>

<script src="./swagger-ui/swagger-ui-bundle.js"> </script>
<script src="./swagger-ui/swagger-ui-standalone-preset.js"> </script>
<script>
    window.onload = function() {

        // Build a system
        const ui = SwaggerUIBundle({
            url: "/openapi.json",
            dom_id: '#swagger-ui',
            deepLinking: true,
            presets: [
                SwaggerUIBundle.presets.apis,
                SwaggerUIStandalonePreset
            ],
            plugins: [
                SwaggerUIBundle.plugins.DownloadUrl
            ],
            layout: "StandaloneLayout",
            oauth2RedirectUrl: "/swagger-ui/oauth2-redirect.html"
        })

        ui.initOAuth({
            clientId: "sample-client-id",
            clientSecret: "secret",
            scopeSeparator: " "
        })

        window.ui = ui
    }
</script>
</body>
* Connection #0 to host petstore.local left intact
</html>

Test petstore https app

$ curl -vvv https://petstore-https.local
* Rebuilt URL to: https://petstore-https.local/
*   Trying 13.52.165.162...
* TCP_NODELAY set
* Connected to petstore-https.local (13.52.165.162) port 443 (#0)
* ALPN, offering h2
* ALPN, offering http/1.1
* Cipher selection: ALL:!EXPORT:!EXPORT40:!EXPORT56:!aNULL:!LOW:!RC4:@STRENGTH
* successfully set certificate verify locations:
*   CAfile: /etc/ssl/cert.pem
  CApath: none
* TLSv1.2 (OUT), TLS handshake, Client hello (1):
* TLSv1.2 (IN), TLS handshake, Server hello (2):
* TLSv1.2 (IN), TLS handshake, Certificate (11):
* TLSv1.2 (IN), TLS handshake, Server key exchange (12):
* TLSv1.2 (IN), TLS handshake, Server finished (14):
* TLSv1.2 (OUT), TLS handshake, Client key exchange (16):
* TLSv1.2 (OUT), TLS change cipher, Client hello (1):
* TLSv1.2 (OUT), TLS handshake, Finished (20):
* TLSv1.2 (IN), TLS change cipher, Client hello (1):
* TLSv1.2 (IN), TLS handshake, Finished (20):
* SSL connection using TLSv1.2 / ECDHE-RSA-AES128-GCM-SHA256
* ALPN, server accepted to use h2
* Server certificate:
*  subject: CN=petstore-https.local
*  start date: Sep 17 22:08:20 2019 GMT
*  expire date: Dec 16 22:08:20 2019 GMT
*  subjectAltName: host "petstore-https.local" matched cert's "petstore-https.local"
*  issuer: C=US; O=Let's Encrypt; CN=Let's Encrypt Authority X3
*  SSL certificate verify ok.
* Using HTTP2, server supports multi-use
* Connection state changed (HTTP/2 confirmed)
* Copying HTTP/2 data in stream buffer to connection buffer after upgrade: len=0
* Using Stream ID: 1 (easy handle 0x7fdf42009c00)
> GET / HTTP/2
> Host: petstore-https.local
> User-Agent: curl/7.54.0
> Accept: */*
>
* Connection state changed (MAX_CONCURRENT_STREAMS updated)!
< HTTP/2 200
< last-modified: Mon, 13 Aug 2018 06:26:44 GMT
< accept-ranges: bytes
< content-type: text/html;charset=UTF-8
< content-language: en-US
< content-length: 1832
< date: Mon, 23 Sep 2019 23:02:31 GMT
< x-envoy-upstream-service-time: 2
< server: envoy
<
<!-- HTML for static distribution bundle build -->
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Swagger UI</title>
    <link href="https://fonts.googleapis.com/css?family=Open+Sans:400,700|Source+Code+Pro:300,600|Titillium+Web:400,600,700" rel="stylesheet">
    <link rel="stylesheet" type="text/css" href="./swagger-ui/swagger-ui.css" >
    <link rel="icon" type="image/png" href="./swagger-ui/favicon-32x32.png" sizes="32x32" />
    <link rel="icon" type="image/png" href="./swagger-ui/favicon-16x16.png" sizes="16x16" />
    <style>
        html
        {
            box-sizing: border-box;
            overflow: -moz-scrollbars-vertical;
            overflow-y: scroll;
        }

        *,
        *:before,
        *:after
        {
            box-sizing: inherit;
        }

        body
        {
            margin:0;
            background: #fafafa;
        }
    </style>
</head>

<body>
<div id="swagger-ui"></div>

<script src="./swagger-ui/swagger-ui-bundle.js"> </script>
<script src="./swagger-ui/swagger-ui-standalone-preset.js"> </script>
<script>
    window.onload = function() {

        // Build a system
        const ui = SwaggerUIBundle({
            url: "/openapi.json",
            dom_id: '#swagger-ui',
            deepLinking: true,
            presets: [
                SwaggerUIBundle.presets.apis,
                SwaggerUIStandalonePreset
            ],
            plugins: [
                SwaggerUIBundle.plugins.DownloadUrl
            ],
            layout: "StandaloneLayout",
            oauth2RedirectUrl: "/swagger-ui/oauth2-redirect.html"
        })

        ui.initOAuth({
            clientId: "sample-client-id",
            clientSecret: "secret",
            scopeSeparator: " "
        })

        window.ui = ui
    }
</script>
</body>
* Connection #0 to host petstore-https.local left intact
